Stud Welder

What is CD Stud Welding:

The CD Stud Welding is a welding process which joins “cd studs” with base metal by discharging the electric energy charged on capacitors. The capacitors supply inrush current which produces an electric ballast between stud & base metal that fuses their joining surfaces, the balance stud & base metal be cool hence no weld sign or deformation on other side of base sheet. At the same time a spring force from welding gun pushes stud towards base metal, with this force both stud & base metal meet in fuse state and the joint forms instantly. The electric blast held only for 1 to 3 milli seconds. This superfast process make cd stud welding superior than other welding processes

Introduction to SW20 Stud welders :

The SW20 series of Cd stud welder is a microcontroller based digital circuit series having 7-segment display to view the set volts & status. All models have easy installation & will work on single phase 220-V electric supply. The output are adjustable from 20 to 200 Volts in 1 volt step. These machines are reliable and instantly welds the studs of various diameters and lengths to metal products made of Mild Steel, Stainless Steel, GI Sheet, bronze, aluminum, copper, titanium and other grades. These have unique specialty over convention welding processes where the convention weld techniques cannot weld thin material, with cd stud welder it is possible to work even with thin sheet metal with a thickness of 0.3 mm, while obtaining a very strong weld without stain. The average time of the welding is about 1 to 3 milli sec. The Cd stud welding machines are best suitable for the 3 to 10 mm diameter studs.

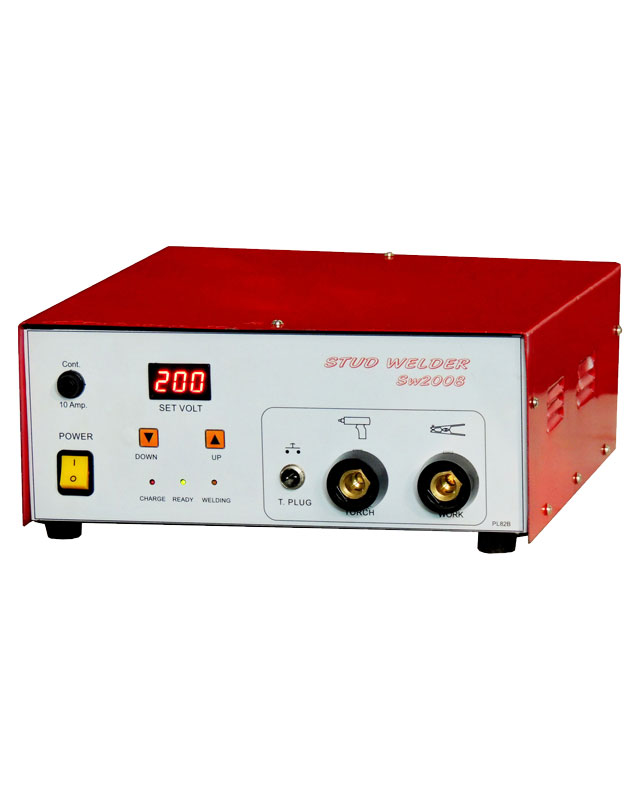

Stud Welder SW2008

Catelogue

Technical Specifications:-

Technical Specifications
Item	Unit	Stud welder SW2008
Supply	V	220
Phase	Ph	1
Power	KVA	1.2
Min. welding setting	V	20
Max. welding voltage	V	200
Charging time	Sec.	1 to 3
Stud diameter	mm	3-8
Weld studs	Min.	10 to 20
Protection class	IP	21
Overall dimensions	in.	14x14x5.5
Weight	Kg	15
Apparatus design type		Portable
Warranty period		1 Year

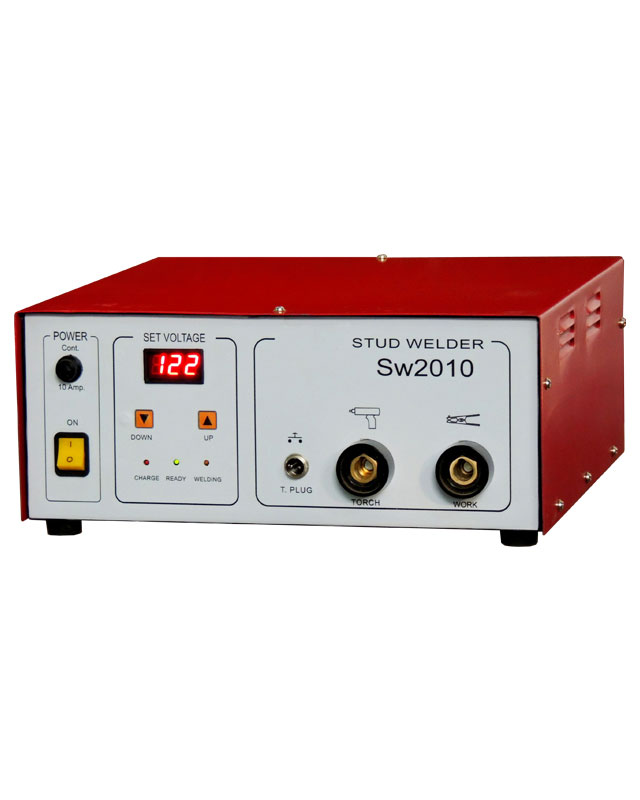

Stud welder SW2010

Catelogue Videos

Technical Specifications:-

Technical Specifications
Item	Unit	Stud welder SW2010
Supply	V	220
Phase	Ph	1
Power	KVA	2
Min. welding setting	V	20
Max. welding voltage	V	200
Charging time	Sec.	1 to 3
Stud diameter	mm	3-10
Weld studs	Min.	10 to 20
Protection class	IP	21
Overall dimensions	in	15x15x6
Weight	Kg	18
Apparatus design type		Portable
Warranty period		1 Year

Stud welder SW2010HD

Technical Specifications:-

Technical Specifications
Item	Unit	Stud welder SW2010HD
Supply	V	220
Phase	Ph	1
Power	KVA	3
Min. welding setting	V	20
Max. welding voltage	V	200
Charging time	Sec.	1 to 3
Stud diameter	mm	3-10
Weld studs	Min.	12 to 20
Protection class	IP	21
Overall dimensions	in.	14x14x5.5
Weight	Kg	15
Apparatus design type		Portable
Warranty period		1 Year

Advantages of CD Stud Welding

Speed and Efficiency: CD stud welding is incredibly fast, with welds speed being completed in fractions of a second. This rapid process significantly boosts productivity, making it ideal for high-volume production environments.
Versatility: From automotive manufacturing to construction and shipbuilding, CD stud welding finds applications across diverse industries. It can weld various stud shapes and sizes to different base materials like Mild steel, Stainless steel, Titanium, Aluminum etc. offering unparalleled versatility.
Minimal Material Distortion: Unlike traditional manual arc welding method that often introduce significant heat into the work-piece that produces stress at molecular level and deforms the work-piece, CD stud welding minimizes heat input, reducing the risk of material distortion and warping, especially in thin metals.
Consistent Results: The automated nature of CD stud welding ensures consistent weld quality, eliminating variability often associated with manual welding processes. This reliability translates to enhanced product quality and reduced rework.
Accessibility: CD stud welding equipment is relatively compact, straightforward to operate and will work on 1-Phase industrial as well as domestic power supply, making it accessible even to users with minimal welding experience. This accessibility democratizes the benefits of advanced welding technology.

Applications across Industries

Automotive: Used for attaching components such as brackets, clips, and reinforcements in vehicle assembly.
Construction: Facilitates the rapid installation of metal studs, anchors, and hangers in steel construction projects. Ex. Master Mason Tools like Metal Float, Brisk Trowel etc.
Shipbuilding: Essential for securing panels, decking, and other structural elements in ship assembly.
Kitchen Appliances: Enables the efficient attachment of metal parts in the production of household appliances. Ex: Fry pan, cooker, Modular kitchen joints & handle etc.
Aerospace: Finds applications in the assembly of aircraft components, where precision and reliability are paramount.
Motors: Earth Thimble Motors
Home Appliances: Electrical connect thimbles (Microwaves, Ovens, Etc.)
Control Panels: Buttons & Switches, Control Panels, CD Earth thimble Electrical Enclosures
Decoration: Decorative Panels, Nameplates, Memorial Signs
Pipeline: Biomass Boilers, Fluid Lines, Biofuel Storage Systems, Exhaust Pipes & Systems
Insulation Applications: Fix roof Insulation with help of cd pins to store food or protect animals from outside intolerable weather

Benefits of CD Stud Welder

The CD stud welding is best, fastest, easy & economical welding process for stud among other welding techniques.

Synonyms: CD Stud welder is also called Stud Welder, Stud welding machine, Bolt welder, Screw welder, Screw head welding, spark welding and blast welding.
